R-Hop vs. Flat Hop for Airsoft: Which Upgrade Is Right for You?

If you've started diving into Airsoft gun upgrades, hop-up mods are probably on your radar. And once you're past the basics, the R-hop vs flat hop debate comes up fast. Both upgrades can meaningfully improve your range and accuracy, but they work differently, install differently, and suit different players. Here's what you actually need to know before you pick one.

What Is a Hop-Up and Why Does It Matter?

The Airsoft hop-up is the system inside your gun that applies backspin to each BB as it travels down the barrel. That backspin creates lift (the Magnus effect),¹ which flattens out the BB's flight path and extends its range. Without hop-up, your BBs would arc downward quickly like any other projectile. With it properly set, they fly much farther and more consistently.

If you want to understand hop-up from the ground up, our guide on What Is Hop-up in Airsoft? covers the full picture.

The stock hop-up that comes in most AEG Airsoft guns uses a small, rounded nub that presses a bump in the rubber bucking down onto the BB at a single point. That contact is minimal and uneven, especially with heavier BBs. Flat hop and R-hop both address this by increasing the surface area between the bucking or patch and the BB, producing more consistent, efficient backspin.

How Each Hop-Up System Works

Stock Hop-Up (Baseline)

The stock setup uses a small raised mound built into the bucking. As the BB passes through, the nub presses that mound into the BB's surface at a single point. It works, but the contact is brief and inconsistent, particularly with heavier BBs that require more spin to carry at range.

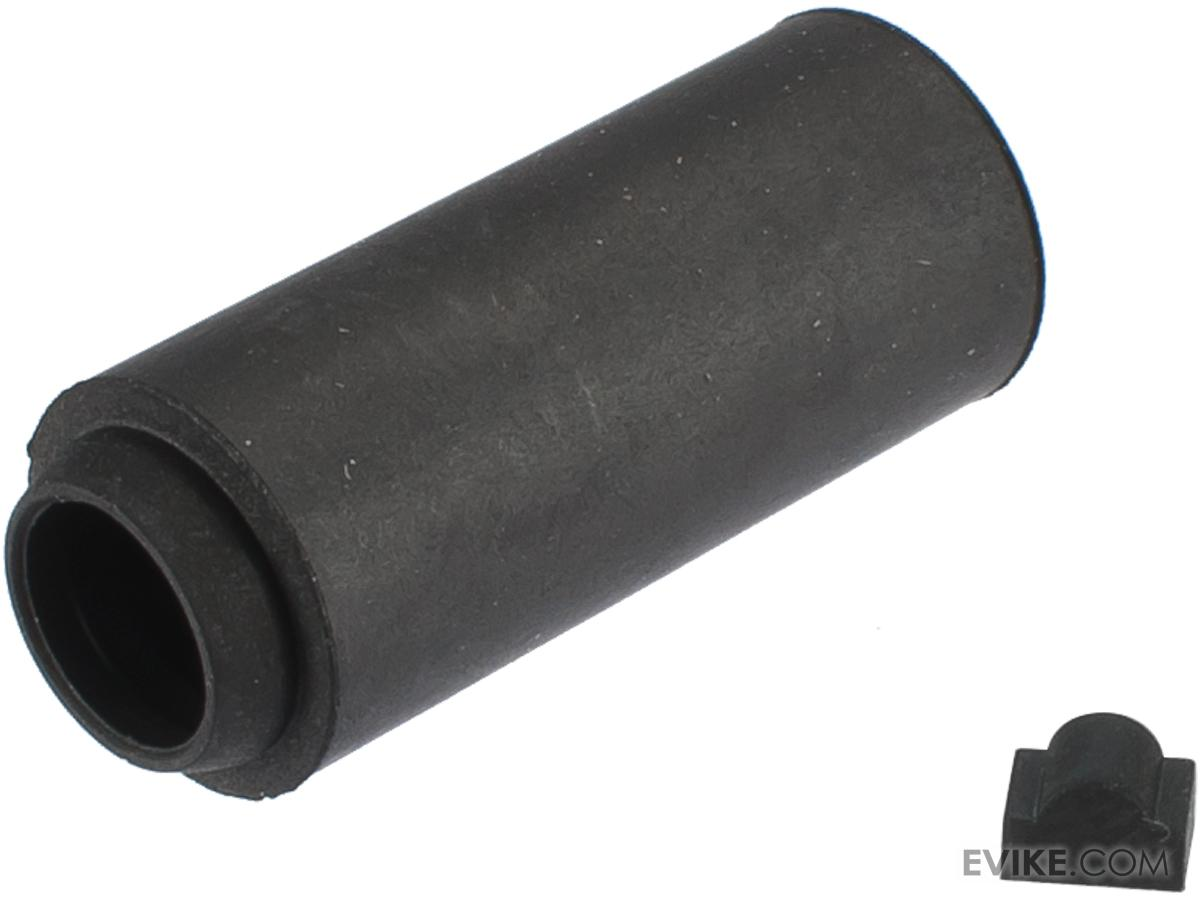

Pictured: Modify Baton Ryusoku Flat Hopup Bucking

Flat Hop

A flat hop removes or replaces the mound in the bucking, pairing a flat or "M"-shaped nub with a smooth-bore bucking. The flat nub pushes the bucking into the barrel window across a wider, flatter surface, creating a longer contact patch with the BB. The result is more even backspin with less concentrated pressure, which means a straighter, more stable trajectory. Because the bucking still handles both air sealing and spin application, finding the right bucking softness for your setup matters.

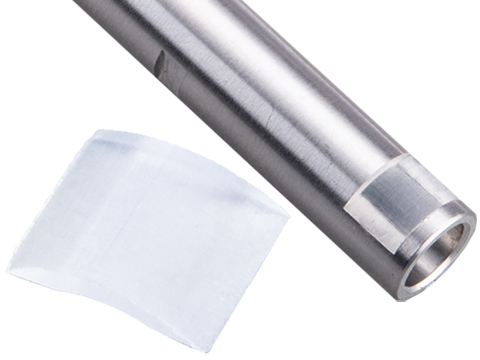

Pictured: 6mmProShop Precision Pre-Cut R-HOP Patch

R-Hop

An R-hop takes a different approach. Instead of modifying the bucking, you install a custom rubber or silicone patch directly into the barrel window itself. The patch handles spin; the bucking (with its mound removed) handles only air sealing. This separation lets you optimize both independently, something a flat hop can't do.

The patch is cut and sanded to match the inner diameter of your specific barrel, so it wraps slightly around the BB rather than pushing against it from one side. That curved surface creates the maximum possible contact area of any hop system, delivering the most efficient backspin available. As one widely-cited technical breakdown of R-hop design puts it, the system produces a more gentle and precise acceleration resulting in longer, flatter trajectories.²

How Do They Compare in Performance?

Range and Accuracy

Both upgrades improve on stock, but the degree matters. Across the Airsoft community, the performance hierarchy is well established: flat hop consistently outperforms stock bucking setups, and R-hop consistently outperforms flat hop, particularly at longer ranges where hop consistency and BB contact quality become the deciding factors. These aren't marginal differences; players who have run both upgrades back-to-back regularly report meaningful gains in effective range and shot-to-shot consistency when moving up the ladder.

It's also worth noting that barrel length, muzzle velocity, and atmospheric conditions all play a role in ultimate range. Flat hop and R-hop improve usable accuracy and consistency within those limits rather than overriding physics.

Performance by BB Weight

BB weight changes how much this all matters:

• 0.20g: Minimal meaningful difference between hop types
• 0.25g: Flat hop starts to show real benefits over stock
• 0.28g-0.32g: Both flat hop and R-hop come into their own
• 0.32g and heavier: R-hop has a clear advantage, consistently able to apply enough backspin to fully utilize the heavier projectile

Side-by-Side Comparison

	Stock	Flat Hop	R-Hop
Contact patch	Small/round	Wide/flat	Maximum/curved to barrel
Effective range gain	Baseline	~+15-25%	~+30-40%
Best BB weight	0.20-0.25g	0.25-0.32g	0.28g+ (ideally 0.32g+)
Install difficulty	N/A	Easy-moderate	Hard
Durability	Varies	~50k-100k rounds	Higher (stiffer patch material)

How Difficult Is Each to Install?

Flat Hop Installation

Flat hop installation is approachable for most players who are comfortable working on their Airsoft guns. You select a smooth-bore (moundless) bucking or trim an existing one, install a flat or M nub, and reassemble. No gluing or precision fitting required. Small imperfections have minimal impact on performance, which makes it forgiving for first-timers.

R-Hop Installation

R-hop is a different story. The patch must be cut to precisely match your barrel window's length and height, then sanded to match your barrel's inner diameter. It gets glued in place with CA (cyanoacrylate) glue, and any misalignment, gap, or uneven surface shows up immediately as erratic flight. Nub seating over the patch requires equal attention.

Experienced Airsoft technicians often describe an R-hop as something that takes many attempts before the installation process becomes reliable and fast. For this reason, many players opt for pre-installed R-hop barrels or kits from brands like Airtech Studios rather than doing a DIY install.

Which Lasts Longer?

Flat hop buckings typically wear out somewhere between 50,000 and 100,000 rounds, depending on your setup, BB quality, and the aggressiveness of the hop. R-hop patch material is notably stiffer than standard bucking rubber and holds up significantly better under sustained use. For high round-count builds like DMRs (Designated Marksman Rifles) or LMGs (Light Machine Guns), that durability difference is worth factoring in.

Alternatives Worth Knowing

Before committing to either mod, a few drop-in options are worth considering:

• Maple Leaf buckings (paired with an Omega or Macaron nub) are a popular first upgrade. They deliver flat hop-level performance without any modification to the bucking or barrel, making them an excellent stepping stone.
• TruSight Tru-Hop buckings are designed to deliver R-hop-like performance in a drop-in package. They're easier to install than a true R-hop, though a well-installed R-hop will still edge them out.
• ER-Hop / IR-Hop are extended R-hop variants with a longer patch window, built specifically for very heavy BBs in sniper and DMR setups.

Flat Hop or R-Hop: Which Should You Choose?

Choose Flat Hop If...

You're newer to hop-up modifications, want a cost-effective upgrade without technical risk, run 0.25g-0.30g BBs, or want something reversible. Flat hop delivers meaningful real-world gains for most casual and competitive players on most Airsoft guns without requiring hours of precision work.

Choose R-Hop If...

You want peak range and accuracy, you run 0.30g or heavier BBs in a DMR or sniper build, you are comfortable with precision DIY work (or willing to buy a pre-built barrel), and you prioritize long-term durability for high round-count setups.

For most players, a quality flat hop or Maple Leaf setup delivers the vast majority of R-hop's performance at a fraction of the complexity and cost. R-hop's edge becomes most apparent in serious long-range builds pushing heavy BBs at distance.
