What Is Hop-Up in Airsoft & Is It Necessary?

If you've spent any time reading about Airsoft guns, you've probably seen the term "hop-up" come up constantly, especially in conversations about accuracy and range. It sounds technical, but the concept is straightforward once you understand what it's actually doing.

Airsoft hop-ups are one of the most important systems in any Airsoft gun, and getting it right is one of the fastest ways for Airsoft players to improve performance on the field. This guide covers how hop-ups work, what they're made of, how to tune them, and whether you actually need them.

How Does a Hop-Up Work?

At its core, an Airsoft hop-up is a device installed inside the barrel chamber of your Airsoft gun that applies backspin to each BB as it's fired. That backspin creates an aerodynamic force called the Magnus effect,¹ which generates lift and counteracts gravity, allowing the BB to fly flatter and farther than it would otherwise.

Without a quality hop-up, a BB follows a steep downward arc almost immediately after leaving the barrel. With a properly tuned hop-up, that same BB can maintain a relatively flat, stable trajectory across a much longer distance.

The Mechanics

As the BB travels through the barrel, it passes through the hop-up chamber. A small rubber component called the bucking has a slight protrusion that briefly contacts the top surface of the BB. That momentary friction causes the BB to rotate backward relative to its direction of travel, creating backspin that can exceed 1,000 RPM (about 17 rotations per second).²

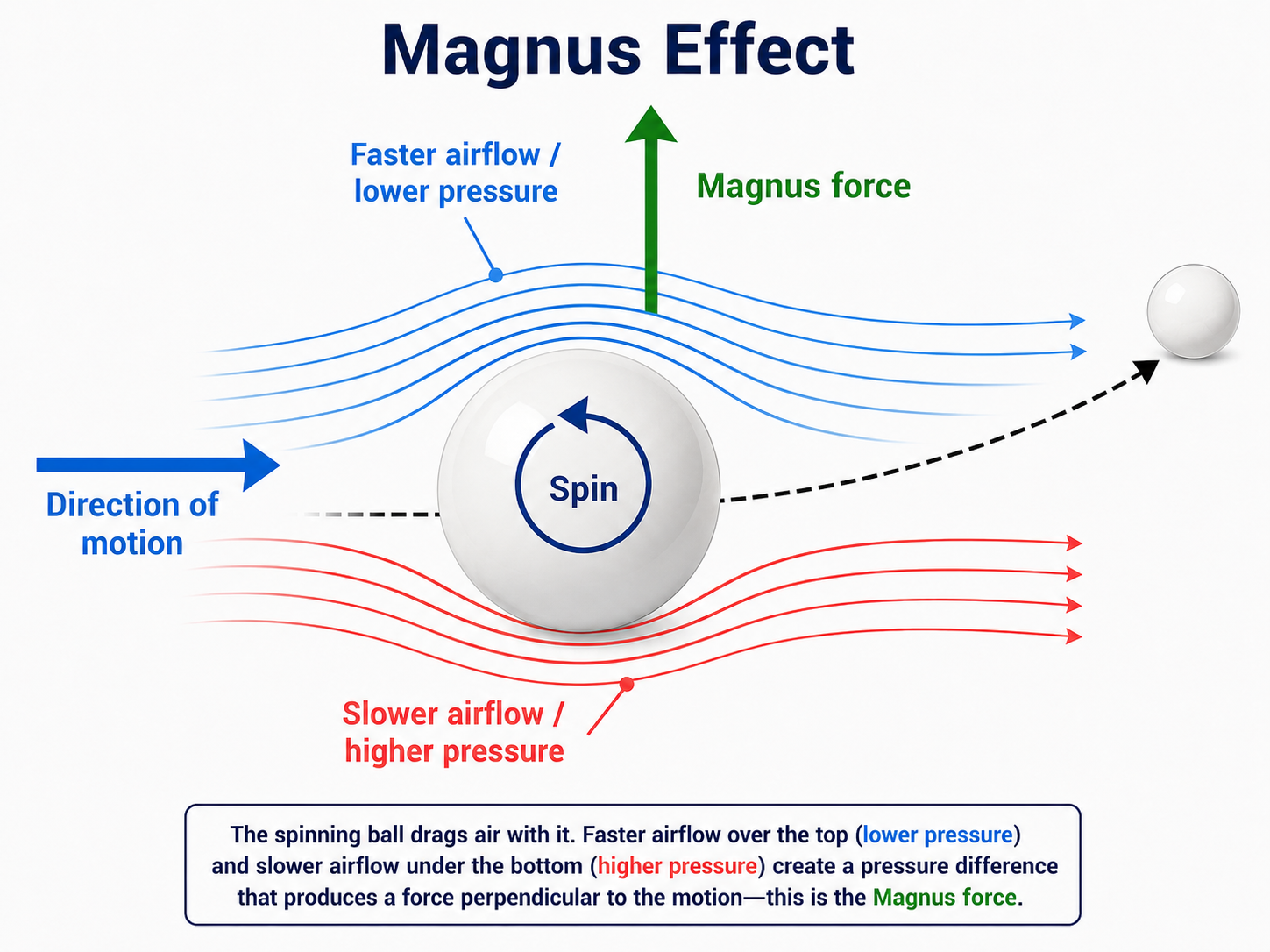

The Magnus Effect

The Magnus effect is a fundamental aerodynamic principle. When a rotating object moves through a fluid like air, it creates a pressure differential. On one side of the spinning object, the air velocity relative to the object increases, leading to lower pressure. On the other side, velocity decreases, resulting in higher pressure. This pressure difference generates a force perpendicular to the direction of motion.³ For a backspinning Airsoft BB, that force is directed upward, working against gravity to keep the BB airborne longer.

A useful way to think about it: topspin in tennis forces a ball downward. Backspin does the opposite. The hop-up puts the same physics to work on every BB you fire.

The Adjustment Dial

Most Airsoft guns feature an adjustment dial or wheel, typically accessible by opening the dust cover or ejection port. Rotating the dial changes how far the bucking protrudes into the barrel, which changes the intensity of the backspin applied. More protrusion means more spin and more lift. Less means less. Getting this balance right for your specific BB weight and range is what tuning is all about.

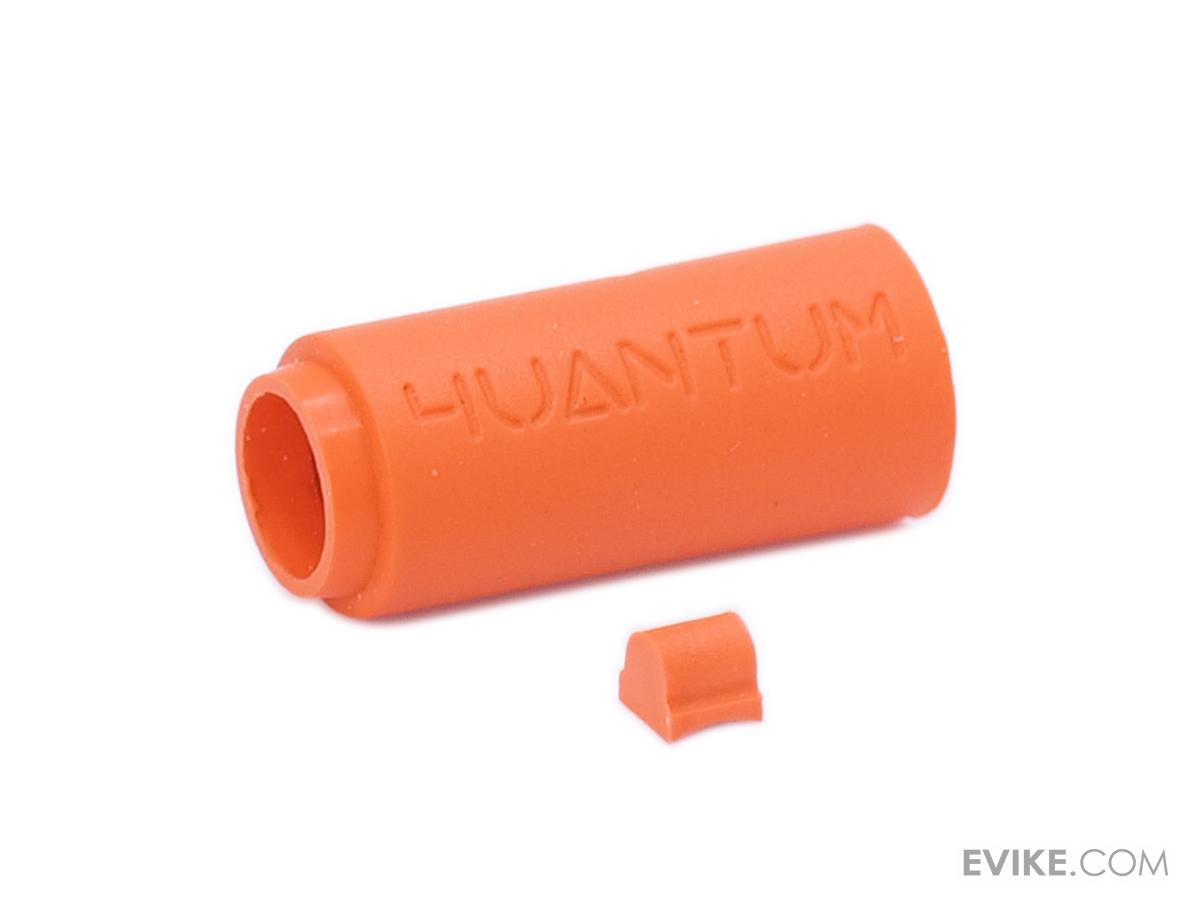

Pictured: 4UAD SmartAirsoft 4UANTUM Friction Pro High-Performance Bucking

Key Components of a Hop-Up System

A hop-up system has three main parts that work together:

• Bucking: The rubber sleeve that is placed over the inner barrel's end. This is the component that actually contacts the BB and generates the spin. Bucking hardness (measured in durometer degrees) affects how much friction is applied and how well it handles different BB weights. Softer buckings generally grip lighter BBs better; harder buckings are better suited for heavier ammo and higher power setups.
• Hop Arm / Adjustment Lever: When you turn the dial, this arm physically presses down on the nub, which, in turn, presses the bucking, increasing or decreasing how much it protrudes into the barrel path.
• Nub: A small piece of rubber or harder material that sits between the arm and the bucking. Its job is to transmit pressure directly onto the bucking's BB contact point. The shape and material of the nub have a meaningful effect on how evenly pressure is applied, directly affecting shot consistency.

The balance between these components matters. Too much hop causes the BB to curve sharply upward like a mortar shot. Too little, and it drops early. A well-tuned setup produces a flat, stable trajectory for the distance you're engaging at.

How to Adjust Your Hop-Up

Tuning your hop-up is something every player should know how to do, and it's simpler than it sounds. Here's the process:

1. Load your magazine with the BB weight you'll actually be using during the match. This matters because heavier BBs require more hop to fly correctly. A setting dialed in for 0.20g BBs will be wrong for 0.28g BBs in the same gun.
2. Find a clear space with at least 30 meters of range and fire a few test shots at a distant target.
3. If the BBs arc sharply downward, increase the hop (dial up).
4. If the BBs curve upward, decrease the hop (dial down).
5. Make small adjustments and test between each change until the BB flies in a flat, stable trajectory.

Optimal hop-up adjustment creates just enough backspin to counteract gravity without causing BBs to curve upward excessively. Too little hop results in rapid BB drop, while excessive hop causes BBs to climb and then dive sharply.

One practical tip: if you change BB weight or switch brands, re-tune. Even a half-step in weight can push you meaningfully off your ideal setting.

Is Hop-Up Actually Necessary?

The short answer is yes, for virtually any practical Airsoft use.

Airsoft guns without a hop-up shoot approximately 20-30 feet before BBs begin dropping significantly. With a properly adjusted hop-up, the effective range extends to around 75-100 feet with standard equipment. Upgraded setups with quality buckings and heavier BBs can push well beyond that. That's a massive difference from the same gun and the same power output. The hop-up is what closes that gap.

Whether you're playing CQB (Close Quarters Battle) indoors or running skirmishes on an outdoor field, hop-up matters. The only scenario where it's less critical is very close-range play under about 15 feet, where BBs haven't had the distance to show a significant drop. Even then, correct hop-up settings help maintain shot consistency and prevent BBs from skipping unpredictably.

Most modern AEG (Automatic Electric Gun) Airsoft guns, gas blowback rifles, and bolt-action Airsoft sniper rifles come with adjustable hop-up units built in. Budget spring-powered Airsoft guns that lack adjustable hop-up are one of the main reasons their range and accuracy fall short compared to other platforms. If you're comparing two guns and one has no adjustable hop-up, that alone is a significant disadvantage.

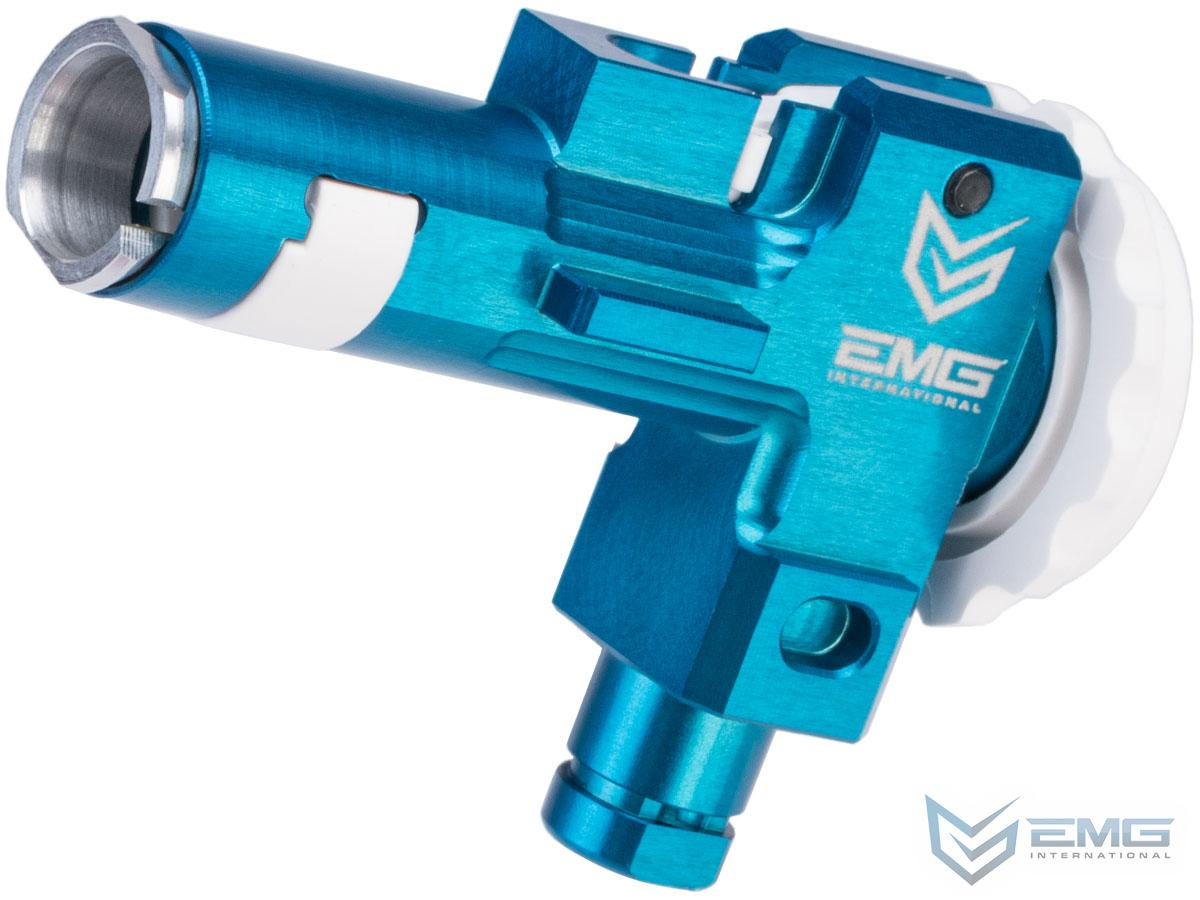

Pictured: EMG x Retro Arms CNC Machined Aluminum Rotary Hop-Up Unit

Types of Hop-Up Systems

Once you understand the basics, it's worth knowing what your upgrade options look like. The Airsoft hop-up market has expanded significantly, and there are meaningful performance differences between systems.

Standard / Stock Hop-Up

The stock system found in most Airsoft guns uses a small round mound on the bucking that contacts the BB at a single point. It's consistent enough for beginners and casual play, and properly tuning a stock hop-up will still make a substantial difference over leaving it unadjusted. That said, the limited contact area means less efficient backspin, particularly with heavier ammo.

Rotary Hop

A rotary hop-up is a type of adjustment mechanism for hop-up units that uses a rotating wheel or dial to control the amount of backspin applied to BBs. This design offers easier fine-tuning compared to older-style hop-ups and can be adjusted even while wearing gloves. However, some rotary chambers on M4-style Airsoft guns have built-in steps in the adjustment, which can occasionally make it difficult to find the perfect sweet spot.

Maple Leaf Bucking

Maple Leaf buckings (paired with an Omega or concave nub) are a popular drop-in upgrade that delivers flat hop-level performance without any modification. They're highly regarded in the community for their consistency, ease of installation, and value. If you're not ready to commit to a more involved mod, a Maple Leaf setup is the most recommended first upgrade for hop-up buckings.

Flat Hop

A flat hop replaces the round mound with a flat nub pressing against a smooth-bore or shaved-down bucking. The result is a wider, flatter contact patch on the BB, which produces more even backspin with less concentrated pressure. You get better consistency and range than stock at a cost-effective price point, with an installation process that's accessible to most players. It's a solid intermediate upgrade that doesn't require precision fitting or permanent modification to your barrel.

R-Hop

The R-hop replaces the bucking's spin function entirely. A custom silicone or rubber patch is installed directly into the barrel window to handle backspin, while the bucking is modified to handle only air sealing. That separation lets you optimize both things independently, and the patch's curved surface maximizes contact with the BB for the most efficient backspin of any system. R-hop excels with heavier BBs (0.30g and up) and delivers the best range and accuracy available, making it the preferred choice for serious DMR (Designated Marksman Rifle) and sniper builds.

Both flat hop and R-hop distribute contact force across a larger surface area of the BB than stock, meaning less downward pressure is needed to achieve the same backspin. This improves shot consistency and reduces wear on the bucking over time.

For a full breakdown of these two systems side by side, including installation difficulty, durability, and which BB weights they suit best, see our guide on R-hop vs flat hop.

Shop Hop-Up Upgrades at Evike.com

Hop-up is the foundational accuracy system in any Airsoft gun. Dialing it in correctly is one of the fastest, most impactful performance improvements you can make before spending money on anything else. Evike.com carries a full selection of Airsoft hop-up units, buckings and nubs from top brands, along with upgrade hop-up chambers and pre-installed R-hop barrels. Whether you're starting with a simple Maple Leaf drop-in or building out a precision long-range setup, shop the full range at Evike.com.
